ASKOWALL
The ASKOWALL is designed for easy installation on any conventional heating buffer tank in order to generate energy-efficient, gentle high-temperature stratification for the user. For this purpose, the ASKOWALL can be connected directly to the corresponding buffer tank.

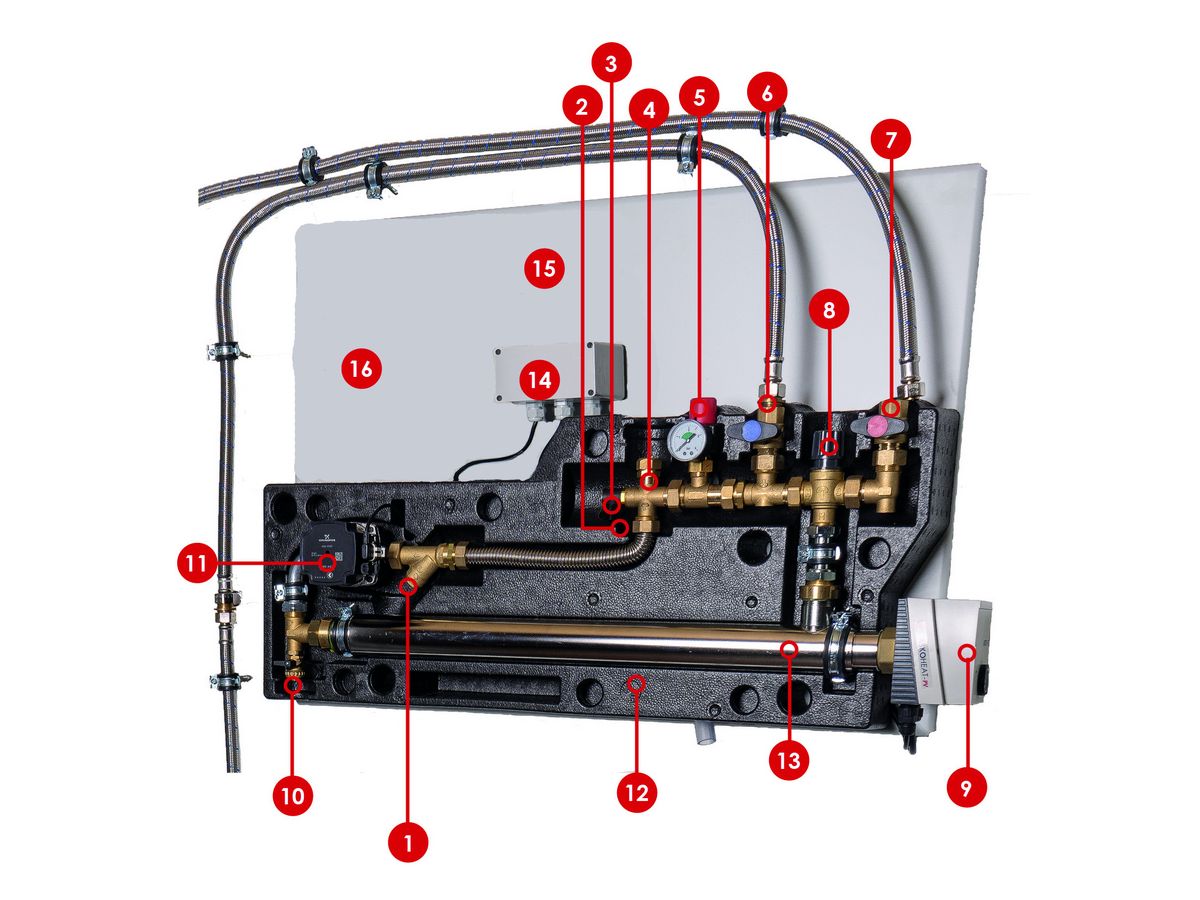

- Mud flap
- Filling valve
- Vent valve
- Connection for possible expansion tank
- Pressure relief valve
- Return flow shutoff (and OXYban hose connection)
- Flow shutoff (and OXYban hose connection)
- Thermostatic valve 50-75°C
- Screw-in heater ASKOHEAT according to choice of power and regulation
- Drain cock
- Circulation pump
- Insulation housing
- Instantaneous water heater ASKOFLOW up to 9kW
- Junction box with pump time delay relay
- Console rear wall
In the ASKOWALL, the user sets the desired temperature on the thermostatic valve (No. 8) at which the valve should open in order to load the storage tank with a minimum temperature. This can be selected between 50 and 75°C.
Example: The desired temperature of 60°C was set. The heating water in the ASKOWALL circulates in the internal circuit until the water is heated to 60°C. The thermostatic valve then opens and transfers the hot water to the storage tank for as long as the desired temperature is available. The thermostatic valve then closes again and the process begins again. The ASKOHEAT can heat the heating water up to 85°C, after which the internal thermostat switches off.
ASKOHEAT heating elements are available in a variety of output sizes. In addition, these ASKOHEAT are also available in 7 levels and continuously adjustable variants. They are suitable for enamelled and black steel tanks and, thanks to the dip switch, also for stainless steel tanks.
The ASKOWALL can also be used as direct heating.

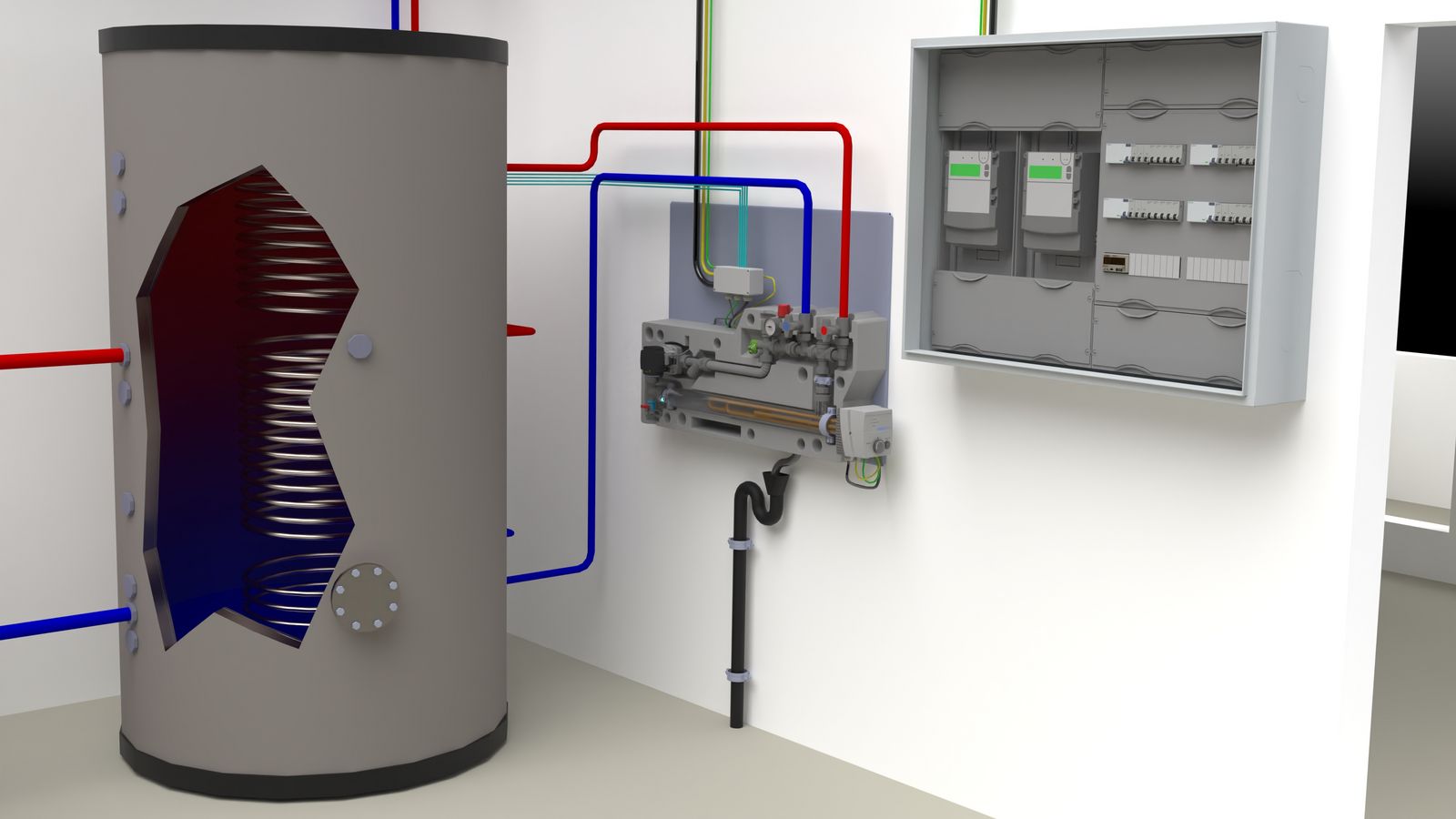

ASKOWALL
ASKOWALL for heating water, consisting of a hydraulic unit with dirt trap, filling valve, air vent, connection for any expansion vessel, pressure relief valve, return flow shut-off, flow shut-off, thermostatic valve 50-75°C, connection for ASKOHEAT depending on the output and control, drain cock, circulation pump and insulation housing. The electrical connection box is pre-wired for the circulation pump and contains the run-on relay.
ASKOWALL+
ASKOWALL+ for heating water, consisting of a hydraulic unit with dirt trap, filling tap, air vent, connection for any expansion vessel, pressure relief valve, return flow shut-off, flow shut-off, thermostatic valve 50-75°C, connection for ASKOHEAT+ depending on the output, drain cock, circulation pump and insulation housing.
The electrical connection box is prepared for the ASKOSET+ system, including pre-wiring of the circulation pump and the heating element.

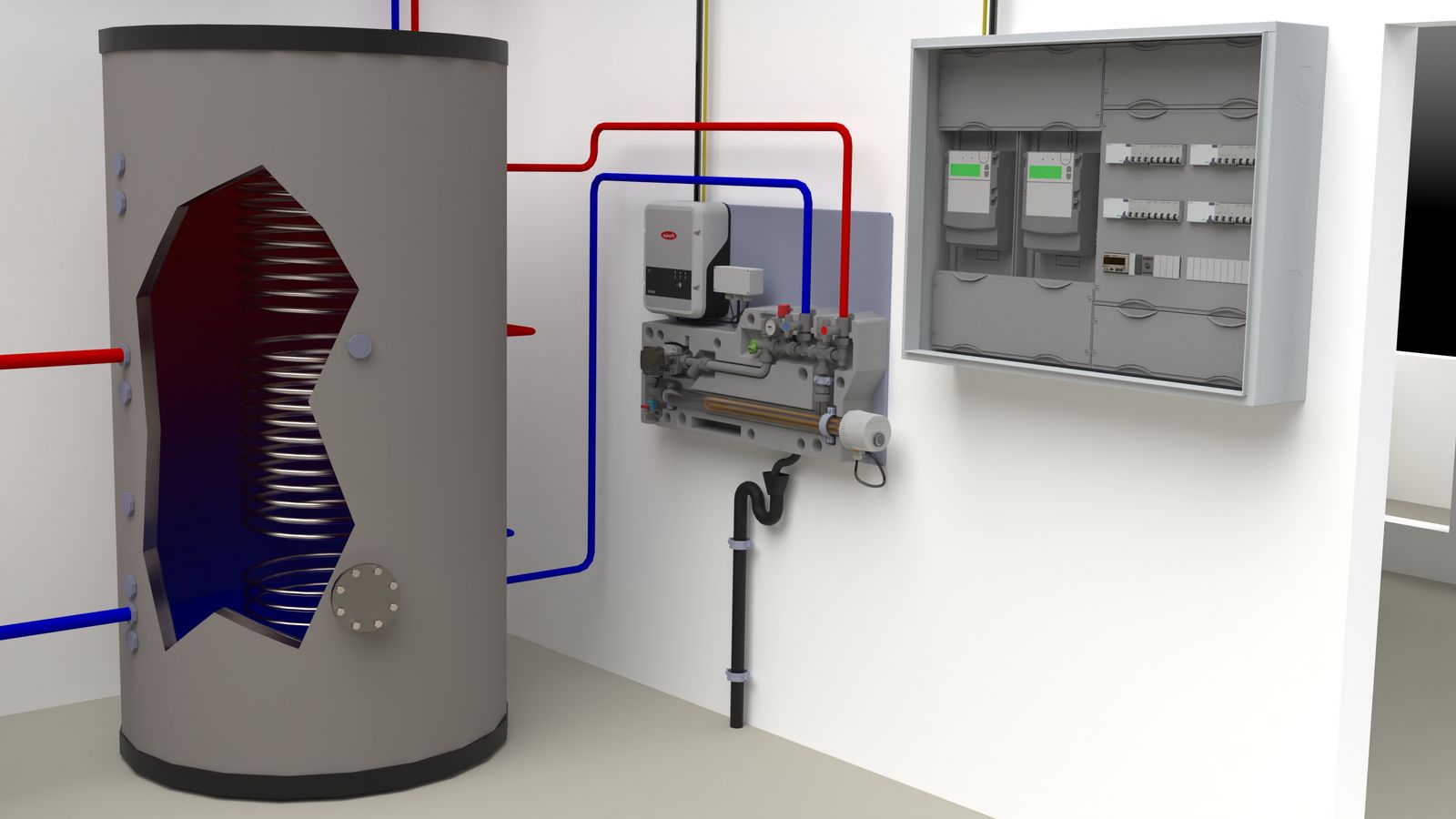

ASKOWALL-OP
ASKOWALL-OP for heating water, consisting of a hydraulic unit with dirt trap, filling valve, air vent, connection for any expansion vessel, pressure relief valve, return flow shut-off, flow shut-off, thermostatic valve 50-75°C, connection for ASKOHEAT-OP depending on the output, drain cock, circulation pump and insulation housing.
The electrical connection box is pre-wired for the on-site Fronius Ohmpilot and for the circulation pump and contains the run-on relay.
